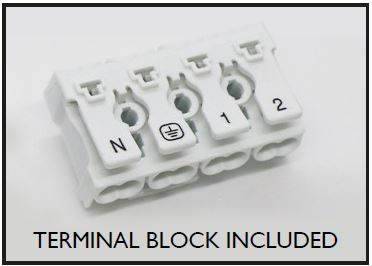

How to use the connection block for a permanent live feed for a Hue system

How to use the connection block for a permanent live feed for a Hue system

Please note: this must be installed by a qualified electrician.

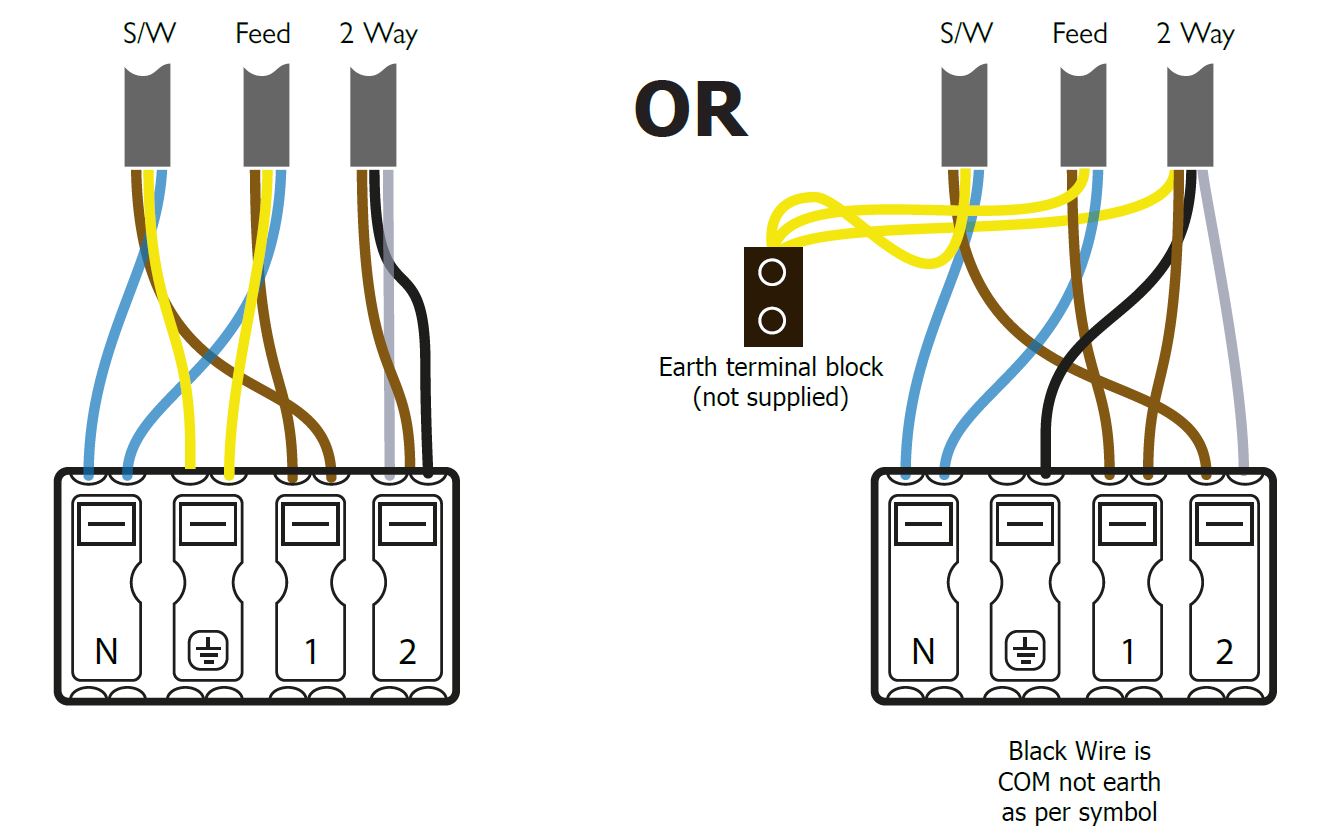

If the unit is to be used as a replacement for an existing product, remove the existing unit from its location and disconnect the wiring making note of which wires are connected. Connect the wires as shown in the diagram. Ensure terminals are correctly inserted and ensure no bare wires are visible. When pushing back into the backbox ensure no wires are trapped. Read the instructions carefully before starting the installation process and keep them safe for future reference.



















SAFETY WARNING
Before use please read carefully and use in accordance with these safety instructions. Before commencing any electrical work ensure the supply is switched OFF at the mains. Either by switching off the consumer unit or by removing the appropriate fuse. This product should be installed in accordance with the relevant sections of the building regulations code and in accordance with the latest edition of IEE regulations (BS 7671). If the unit is to be used as a replacement for an existing product, remove the existing unit from its location and disconnect the wiring. Connect the wires as shown in the diagram. Ensure terminals are properly tightened and ensure no bare wires are visible. When pushing back into the backbox ensure no wires are trapped. Read the instructions carefully before starting the installation process and keep them safe for future reference.







You can find the instruction manuals here at the bottom of the page. If you need any further help you can email our support team at support@retrotouch.co.uk
